Technical details

Cordless power systemAP
Drive2,0 - 4,5 km/h
Recommended batteryAP 300 S
Device weight without battery66.1 lb
Cutting height30 - 100 mm

Features

The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.

This tool is IPX4-rated weather-resistant construction and has been designed and tested for splash water protection.
IPX4 RATING
The state-of-the-art mono-comfort handlebar enables easy access to the grass bag, height adjustment, and convenient foldaway storage.
Mono-Comfort Handlebar
Just push the button and pull the switch lever for instant startup.
Power Switch
Soft rubber texture is both easy to grip and makes the product comfortable to hold for extended periods.
Rubberized Soft-Touch Handle
The self-propel function features a variable-speed setting control, reducing user fatigue by offering choices of mowing speeds.
Self-Propelled
The multi-blade provides powerful cutting performance to shred grass into small pieces for a cleaner cut and look to the lawn.
Multi-Blade
The polymer grass bag is designed to improve operator comfort and features a closed top and back along with downward angled side vents to reduce dust exposure. In addition, when the grass bag is empty, the indicator is flipped up to indicate the bag is not full. The indicator will flip down when the bag is full.
Polymer Grass Bag
The 4-in-1 mower gives users the option to mulch, catch, or side or rear discharge grass depending on their needs.
4-in-1 Mower
The wheels have been equipped with traction pattern and stability for effortless maneuvering and line holding during mowing.
Easy-Running Wheels
With the easy, one-touch central cutting height adjustment, users can customize the height of their grass with just the push of a button.
Central Cutting Height Adjustment
The built-in mulch flap is easily engaged or disengaged with the flip of a switch depending on whether the mulching function is being used, eliminating the need for a separate plug.
Integrated Mulch Flap
The integrated carrying handles help users easily lift or tip their mower and can double as eyes for securing the mower during transport.
Carrying Handles

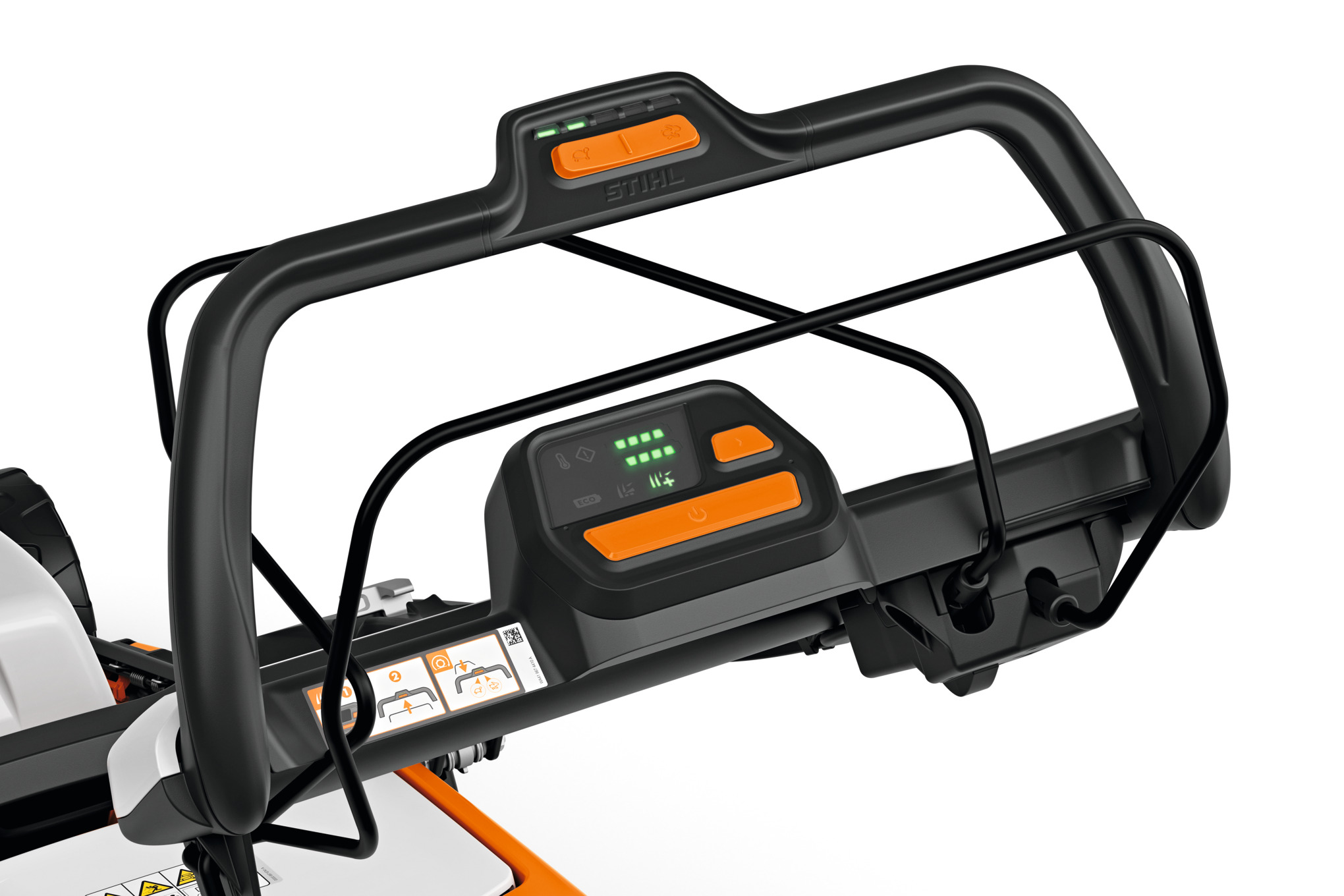

The HMI control panel helps users manage their machines by providing at-a-glance information on battery-life levels as well as providing easy speed adjustment and other operating options.
HMI Control
The three mowing modes can be activated to automatically adjust RPMs to the application. ECO mode provides efficient battery usage, standard mode adjusts the RPMs depending on grass resistance against the blade, and auto boost raises RPMs when grass resistance is felt
Three Modes
With sequential discharge, there’s no need to swap out batteries. As the first battery depletes, the second is activated with no downtime and the ability for users to enjoy the run time of two onboard batteries seamlessly.
Sequential Discharge

Hazard Warnings

General Power Tool

Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products. STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only. Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products. STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.

Proposition 65 - English

This product contains chemicals known to the State of California to cause cancer and reproductive harm. www.P65Warnings.ca.gov
