STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
$2,099.99
Prices on STIHLUSA.com may vary by dealer and location. Some prices shown are for reference to the MSRP or Distributor Suggested Retail Price, while the final purchase price is set by the selling dealer. Prices, terms, and availability may differ online and in-store.
Select Item
- Product Details
- All-purpose cut-off machine with STIHL Injection system
- For building, civil engineering and road construction
- Precise cut guidance with the STIHL anti-vibration system
- Loop handle for enhanced comfort in all cutting positions
- For 14" cutting wheels
Technical details
| Displacement | 4.4 cu-in |
| Power | 3.90 kW |
| Engine power | 5.30 HP |
| Device weight without refuelling | 22.5 lb 1) |
| Cutting disk diameter | 350 mm |
Features
The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.
Includes retainer for easy use, even with gloves on.
The decompression valve reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope.
Electronic Water Control allows the operator to easily adjust the flow of water while cutting and stops the water flow when the machine is at idle.
The fuel injection system makes starting easier and more reliable by eliminating the choke. Just set the switch to on, prime and pull.
The ergonomic top-handle bar design provides an optimal comfortable grip in any working position.
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
The ElastoStart™ starter handle is a feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
With consistent semi-automatic re-tensioning, this feature increases the service life of the belts and shaft bearings
The X2 Air Filtration System revolutionizes the cut-off machine industry by allowing air filters to last up to a year, based on cutting conditions. Outside air enters the system in a swirling motion, removing 80% of dust particles. This pre-cleaned air is then routed through the primary and secondary air filters before being sent into the engine. The X2 Air Filtration System is virtually maintenance free and maintains an incredible 99.96% cleaning efficiency.
Advanced engine technology provides high performance in the toughest conditions.

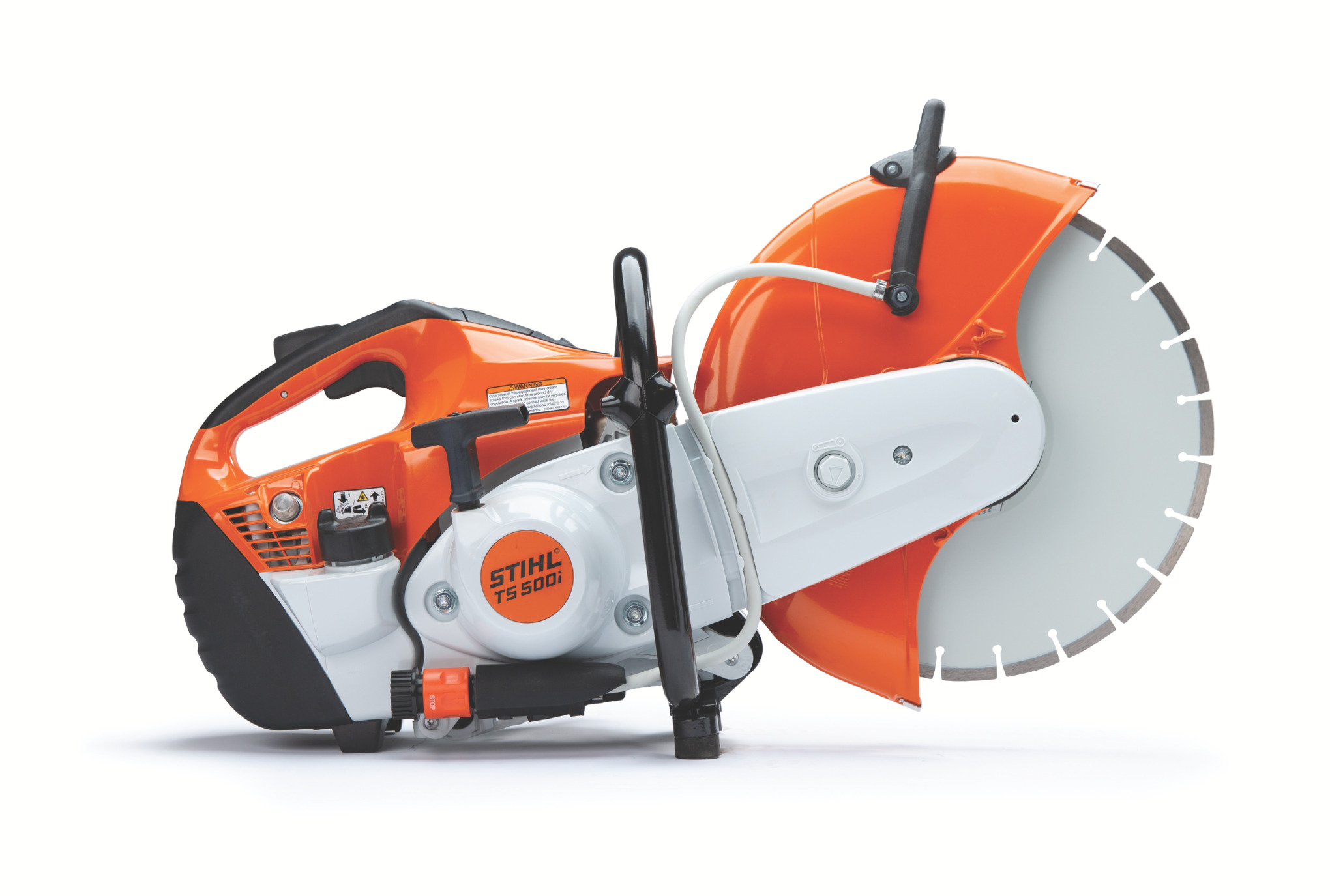

Abrasive cutting just got more cutting edge. STIHL introduces another industry first with the TS 500i STIHL Cutquik® cut-off machine—the first handheld outdoor power tool to offer an electronically controlled fuel-injection system. This system increases power and performance over 15% while remaining lightweight and well-balanced. The fuel injection system makes starting easier and more reliable by eliminating the choke. Just set the switch to on, prime, and pull.
Lightweight, powerful, and fuel-injected, this 14” cut-off machine is designed for superior balance and handling during your toughest jobs. Just like a powerful sports car, you will be impressed with the amazing acceleration of this machine, getting you back to speed faster than you thought possible. The STIHL TS 500i also features a highly-efficient, low exhaust emission engine and optimal torque throughout its RPM range. Its Electronic Water Control (EWC) allows for easy water flow adjustment while cutting, and its X2 air filtration system maintains an incredible 99.96% cleaning efficiency. This machine has it all, so very little can stand in your way.
NOTE: Abrasive wheel included. Diamond wheel (shown) sold separately.
Hazard Warnings
E-10 Statement
Note: STIHL recommends use of fuel with no more than 10% Ethanol content. Using fuel with greater than 10% Ethanol content may cause damage to your equipment and may void your STIHL warranty.
Proposition 65 - EnglishThis product contains chemicals known to the State of California to cause cancer and reproductive harm. www.P65Warnings.ca.gov
General Power ToolImproper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products. STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only. Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products. STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.
