The Adjustable Automatic Oiler allows the user to adjust the lubricant of the guide bar and saw chain for different bar lengths and cutting conditions.
Technical details
| Displacement | 5.6 cu-in |
| Power | 5.40 kW |
| Engine power | 7.30 HP |
| Engine power | 7.20 bhp |
| CO2 | 818 |
Features
The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.
STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
These spikes prevent pull-in and provide better control, making cutting easier.
The decompression valve reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope.
The decompression valve, also referred to as 'deco' or 'deco valve', vents compression in the cylinder for easier starting. The decompression valve temporarily reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope. It is opened manually and closes automatically as soon as the engine fires.
The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
The HD2 air filter on this unit is washable, providing extremely long filter life and lowering maintenance costs. The large surface area allows for longer run times between cleanings and high performance even while operating in dusty and dry conditions. Overall, the HD2 air filter provides better protection of the engine compared to standard air filters.
The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.
The sprocket cover is lightweight and the captive bar nuts are held securely in place for efficient saw chain maintenance.
Saw can be used in multiple positions for felling or limbing with hands in the proper positions.
The Master Control Lever™ is an easy to use single lever, operating the choke, starting throttle lock, and on-off switch. The operator must pull the throttle trigger before moving the Master Control Lever™ to the choke position.
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
The ElastoStart™ starter handle is an exclusive feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
STIHL Quickstop® is designed to reduce the risk of injury in certain kickback situations. An additional manually activated chain brake is designed to engage when the operator‘s right hand completely releases the rear handle, stopping the chain within one second.
The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
See it in action!
This safety feature must be depressed before the trigger can be activated.
Simply lift the lever and twist the caps to remove or tighten. There’s no need to use a tool to tighten or loosen.

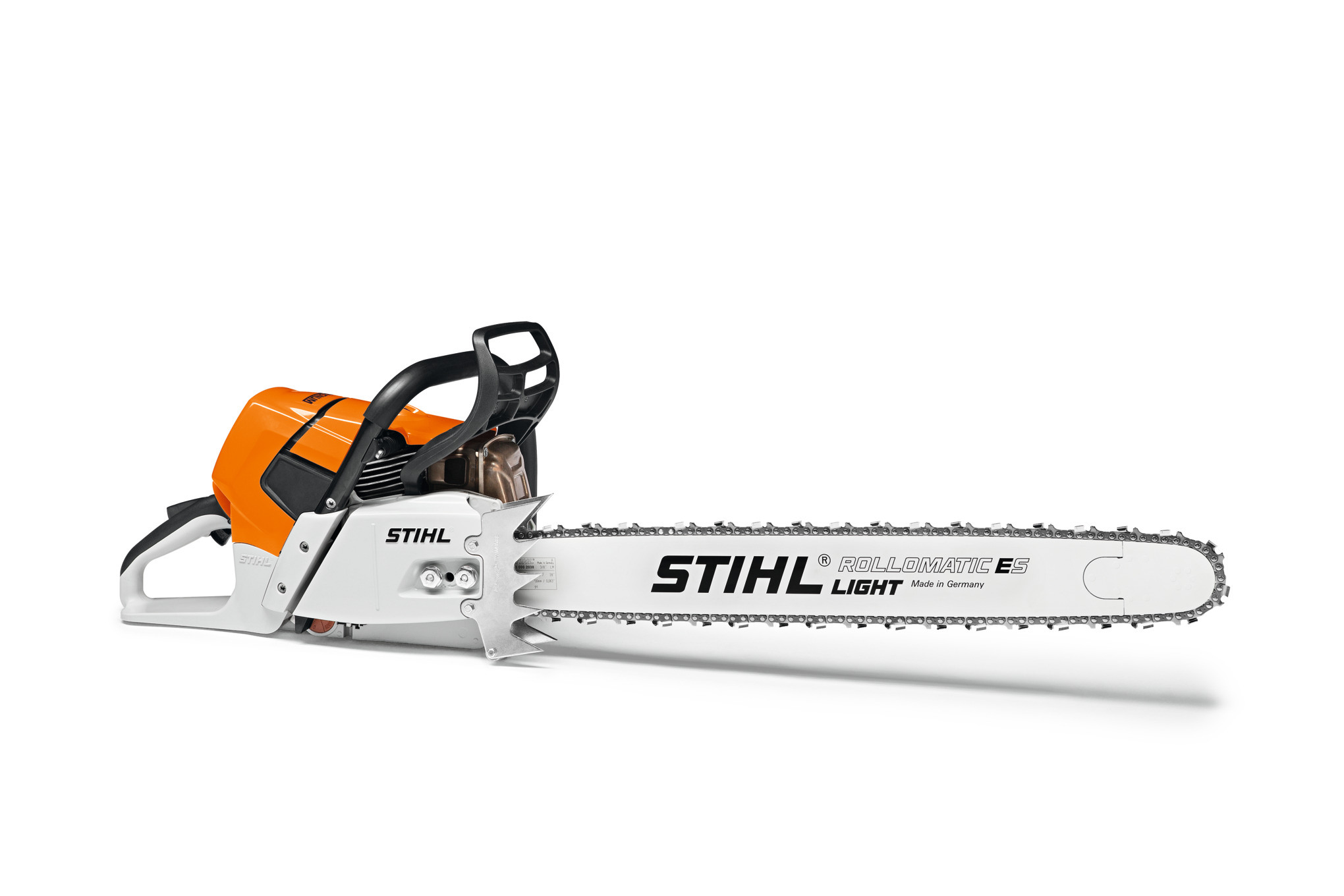

The MS 661 MAGNUM® chainsaw delivers the professional power and rugged dependability you need to take on tough felling jobs.
The MS 661 MAGNUM® professional chainsaw delivers the reliable power and rugged dependability you need for felling, de-limbing, and bucking large diameter trees. This chainsaw features a simple, proven, and non-electronic design. A fuel-efficient engine and low-maintenance air filtration system help keep operating costs low, while the STIHL anti-vibration management system reduces fatigue and improves handling when compared to the previous model, even when using long guide bars. The MS 661 MAGNUM® chainsaw is the perfect partner for forestry, municipal, and tree service professionals.
Hazard Warnings
General Power Tool
Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products. STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only. Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products. STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.
E-10 StatementNote: STIHL recommends use of fuel with no more than 10% Ethanol content. Using fuel with greater than 10% Ethanol content may cause damage to your equipment and may void your STIHL warranty.
Proposition 65 - EnglishThis product contains chemicals known to the State of California to cause cancer and reproductive harm. www.P65Warnings.ca.gov
