The Adjustable Automatic Oiler allows the user to adjust the lubricant of the guide bar and saw chain for different bar lengths and cutting conditions.
Technical details
| Displacement | 4.4 cu-in |
| Power | 4.40 kW |
| Engine power | 6 HP |
| Engine power | 5.90 bhp |
| Device weight without refuelling | 13.3 lb 1) |
Features
The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.
STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
These spikes prevent pull-in and provide better control, making cutting easier.
The decompression valve, also referred to as 'deco' or 'deco valve', vents compression in the cylinder for easier starting. The decompression valve temporarily reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope. It is opened manually and closes automatically as soon as the engine fires.
The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
Housings are lightweight, withstand greater impact, and are corrosion-resistant.
This product is lightweight for easy portability, great maneuverability, and extended use.
Saw can be used in multiple positions for felling or limbing with hands in the proper positions.
The Master Control Lever™ is an easy to use single lever, operating the choke, starting throttle lock, and on-off switch. The operator must pull the throttle trigger before moving the Master Control Lever™ to the choke position.
This time-saving technology boosts the efficiency of the engine’s filter system, doubling the time between air filter cleanings. Air drawn into the engine is first separated via centrifugal force, ejecting the heavier dirt particles before being routed to the air filter. This pre-separation means less dirt to be captured by the air filter, resulting in less frequent cleaning and maintenance.
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
The ElastoStart™ starter handle is an exclusive feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
This product features M-Tronic™ (M) - a new generation of Intelligent Engine Management that eliminates the low and high speed carburetor adjustment screws, compensates for dirty air filter and changes in elevation and fuel quality for optimum engine power at all times.
STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
This safety feature must be depressed before the trigger can be activated.
See it in action!
Simply lift the lever and twist the caps to remove or tighten. There’s no need to use a tool to tighten or loosen.
The Winter/Summer Shutter allows the carburetor to operate at optimum temperature year-round and helps to prevent carburetor icing when working below 50°F (10°C).
This chainsaw combines optimum torque, power, and weight with the performance benefits of STIHL M-Tronic™ technology.

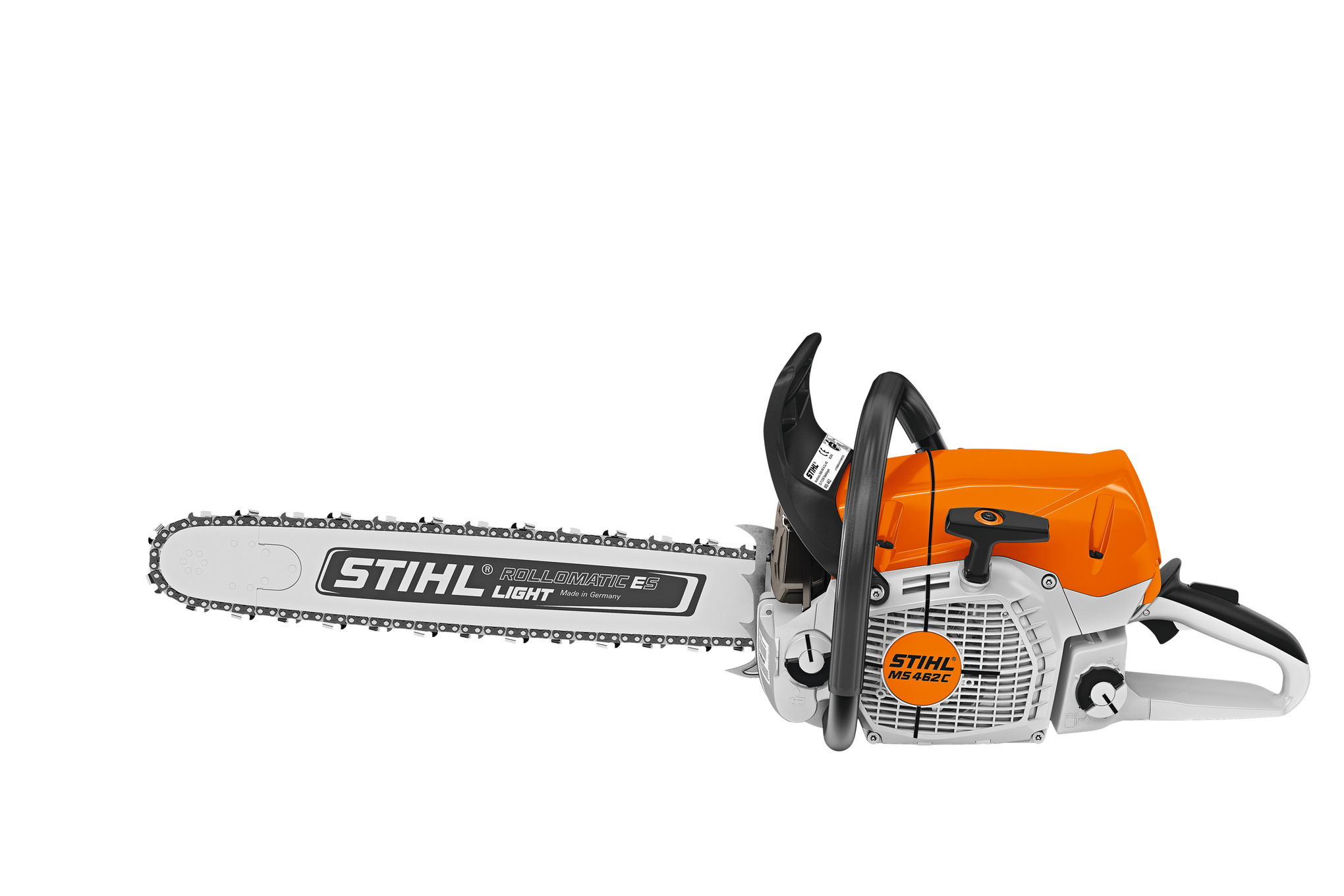

Meet your ideal business partner—the STIHL MS 462 C-M chainsaw—specially engineered for the professional who desires more power with less weight. At just over 13 pounds, the MS 462 C-M is the lightest-ever STIHL chainsaw produced in its fuel-powered class and thus reduces the fatigue you experience in daily forestry work. It features an excellent power-to-weight ratio for added maneuverability tested by professionals in the field. The next generation STIHL M-Tronic™ engine management system electronically controls ignition timing and fuel metering. Conveniently, the saw auto-adjusts for changes in its operating environment, such as changes in altitude and fuel quality, for optimal performance. As an added measure to reduce vibration and user fatigue, the anti-vibration system is designed for good handling when the MS 462 C-M is equipped with longer guide bars.
