STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
Technical details
| Displacement | 3.6 cu-in |
| Power | 3.10 kW |
| Engine power | 4.20 HP |
| Engine power | 4.20 bhp |
| Device weight without refuelling | 13.8 lb 1) |
Features
The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.
These spikes prevent pull-in and provide better control, making cutting easier.
The decompression valve, also referred to as 'deco' or 'deco valve', vents compression in the cylinder for easier starting. The decompression valve temporarily reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope. It is opened manually and closes automatically as soon as the engine fires.
Housings are lightweight, withstand greater impact, and are corrosion-resistant.
The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.
The Master Control Lever™ is an easy to use single lever, operating the choke, starting throttle lock, and on-off switch. The operator must pull the throttle trigger before moving the Master Control Lever™ to the choke position.
A powerful low exhaust emission engine saves users fuel and operating costs without losing the power they count on to get the job done.
This time-saving technology boosts the efficiency of the engine’s filter system, doubling the time between air filter cleanings. Air drawn into the engine is first separated via centrifugal force, ejecting the heavier dirt particles before being routed to the air filter. This pre-separation means less dirt to be captured by the air filter, resulting in less frequent cleaning and maintenance.
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
This safety feature must be depressed before the trigger can be activated.
Simply lift the lever and twist the caps to remove or tighten. There’s no need to use a tool to tighten or loosen.
The advanced engine technology of this chainsaw improves fuel economy by up to 20% over previous model chainsaws for longer run times.

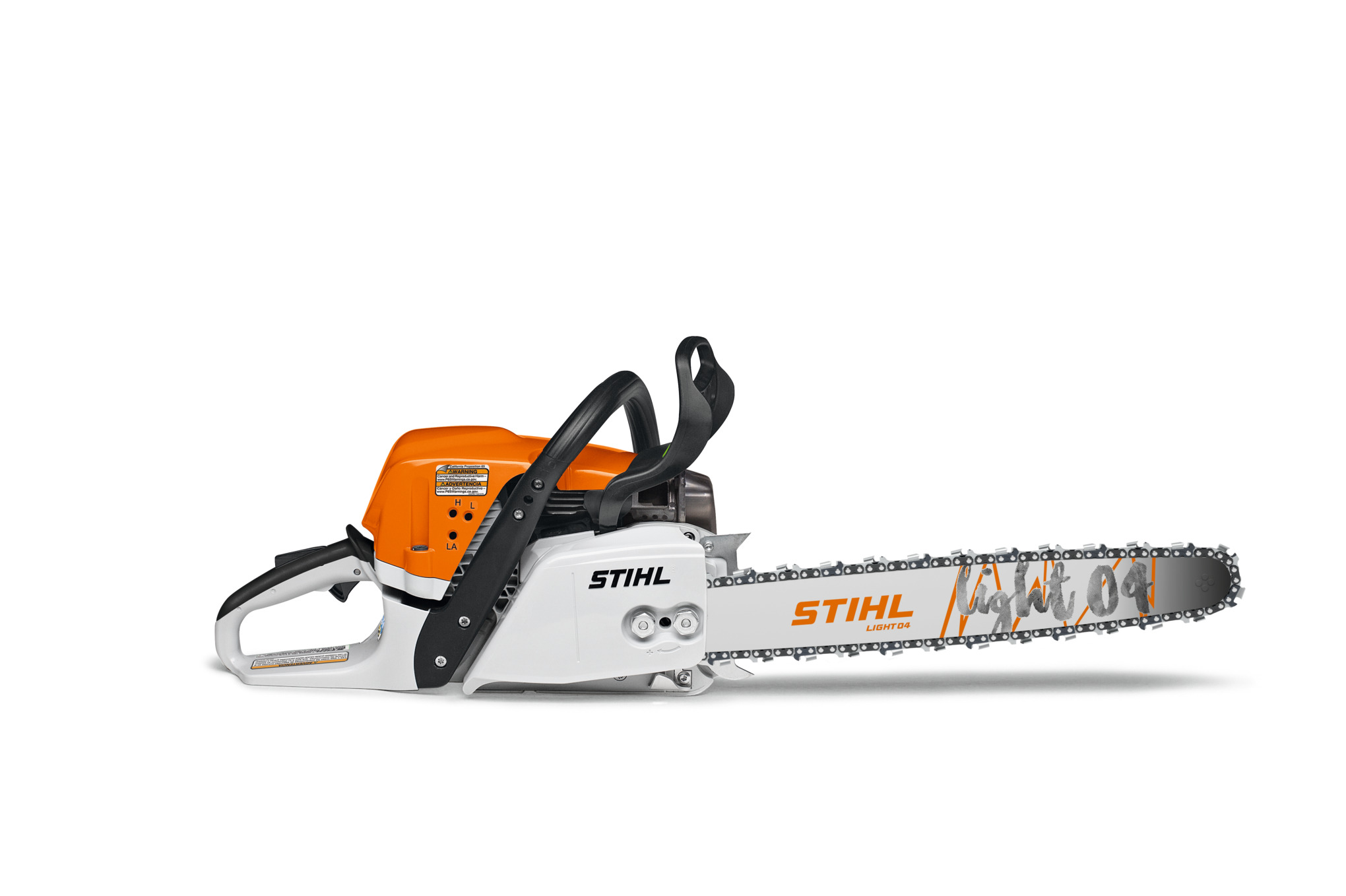

The MS 311 is a high-tech workhorse with low fuel consumption and reduced exhaust emissions. This powerful saw is ideal for large properties, farms, and ranches. It offers several comfort features, such as a side-access chain tensioner, an advanced anti-vibration system, and toolless fuel and oil caps with retainers. The MS 311 also has large fuel and oil tanks for extended use. With STIHL advanced engine technology, you get higher fuel economy and longer run times. You’ll stay productive while you’re saving money on fuel. With fuel-efficiency and a high-powered engine, the MS 311 will help reduce your downtime on the job—so you can enjoy your own downtime when the job is done.
Hazard Warnings
Proposition 65 - English
This product contains chemicals known to the State of California to cause cancer and reproductive harm. www.P65Warnings.ca.gov
E-10 StatementNote: STIHL recommends use of fuel with no more than 10% Ethanol content. Using fuel with greater than 10% Ethanol content may cause damage to your equipment and may void your STIHL warranty.
General Power ToolImproper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products. STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only. Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products. STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.
