Technical details

Displacement3.1 cu-in
Power2.60 kW
Engine power3.50 HP
Engine power3.50 bhp
Device weight without refuelling12.4 lb 1)

Features

The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.

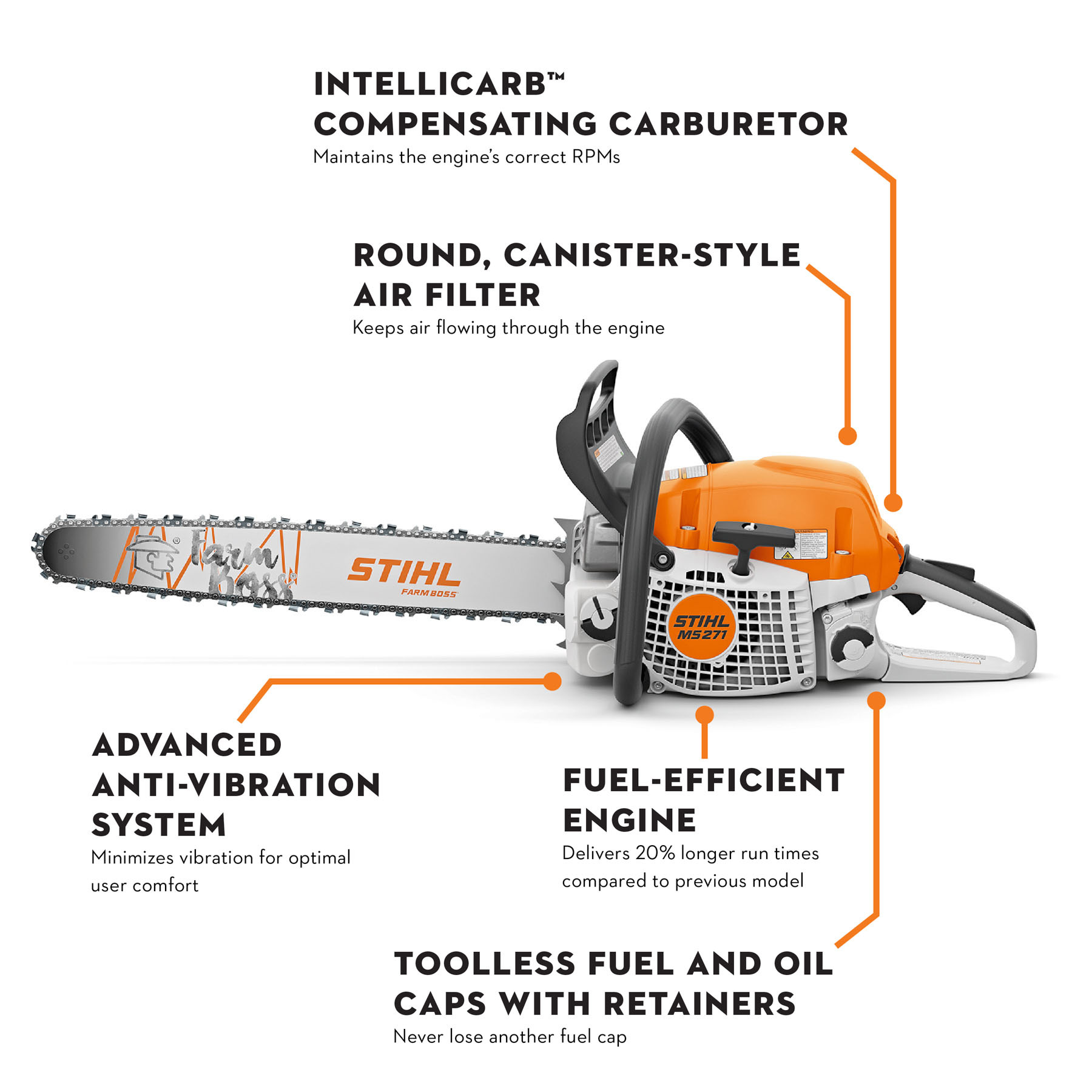

STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
Anti-Vibration System
These spikes prevent pull-in and provide better control, making cutting easier.
Bumper Spikes
Housings are lightweight, withstand greater impact, and are corrosion-resistant.
High-Tech Polymer Housings
A majority of STIHL products sold in America are made in America of U.S. and global materials.
Made in America
The Master Control Lever™ is an easy to use single lever, operating the choke, starting throttle lock, and on-off switch. The operator must pull the throttle trigger before moving the Master Control Lever™ to the choke position.
Master Control Lever™
A powerful low exhaust emission engine saves users fuel and operating costs without losing the power they count on to get the job done.
Powerful Low Exhaust Emission Engine
This time-saving technology boosts the efficiency of the engine’s filter system, doubling the time between air filter cleanings. Air drawn into the engine is first separated via centrifugal force, ejecting the heavier dirt particles before being routed to the air filter. This pre-separation means less dirt to be captured by the air filter, resulting in less frequent cleaning and maintenance.
Pre-Separation Air Filtration System
The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
Side-Access Chain Tensioner
This safety feature must be depressed before the trigger can be activated.
Throttle Trigger Interlock
Simply lift the lever and twist the caps to remove or tighten. There’s no need to use a tool to tighten or loosen.
Toolless Fuel and Oil Caps with Retainers

Hazard Warnings

E-10 Statement

Note: STIHL  recommends use of fuel with no more than 10% Ethanol content. Using fuel  with greater than 10% Ethanol content may cause damage to your equipment and  may void your STIHL warranty.

Proposition 65 - English

This product contains chemicals known to the State of California to cause cancer and reproductive harm. www.P65Warnings.ca.gov

General Power Tool

Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products. STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only. Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products. STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.
