Technical details

Displacement2.8 cu-in
Power2.20 kW
Engine power3 HP
Engine power3 bhp
Device weight without refuelling10.6 lb 1)

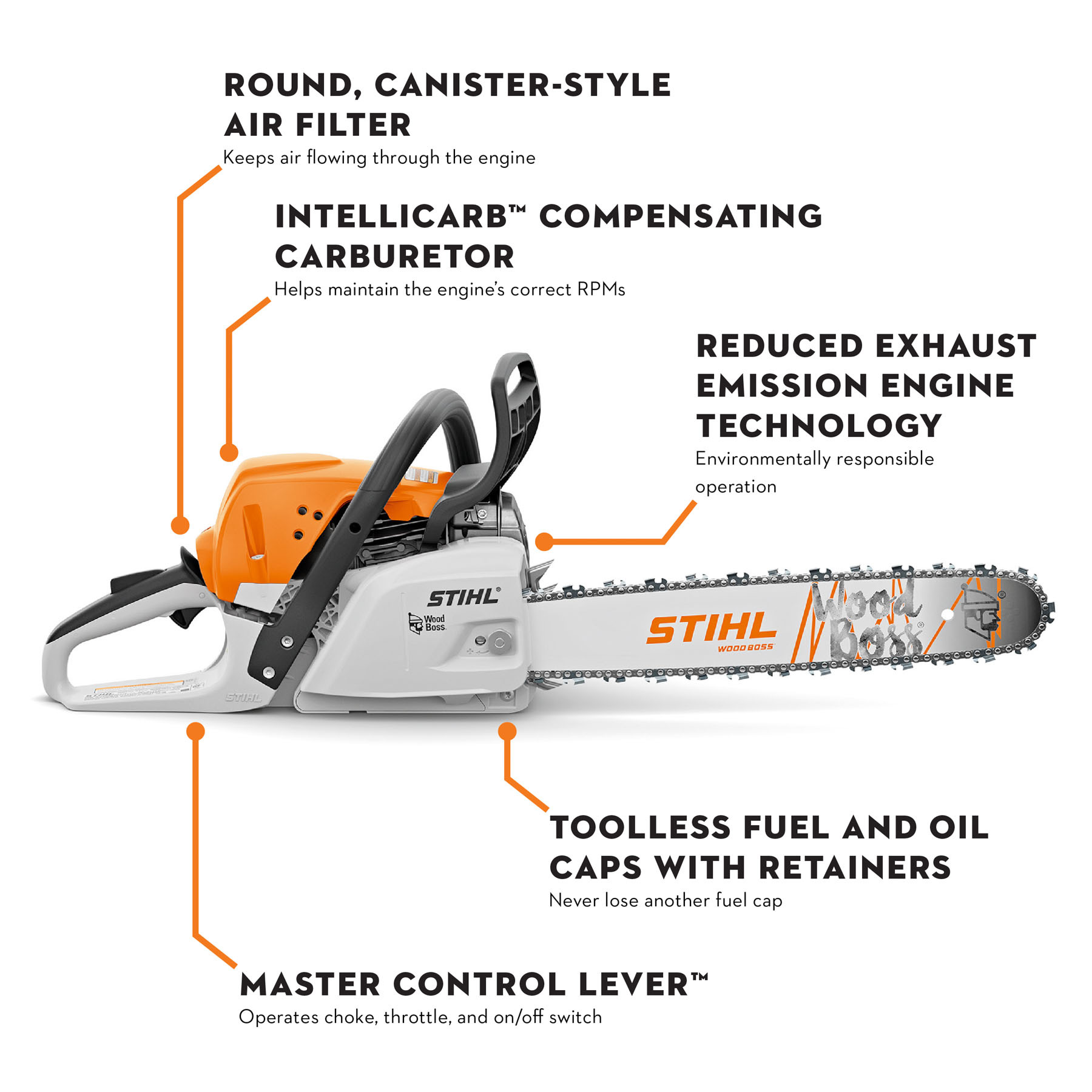

Features

The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.

STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
Anti-Vibration System
These spikes prevent pull-in and provide better control, making cutting easier.
Bumper Spikes
Housings are lightweight, withstand greater impact, and are corrosion-resistant.
High-Tech Polymer Housings
The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.
IntelliCarb™ Compensating Carburetor
A majority of STIHL products sold in America are made in America of U.S. and global materials.
Made in America
The Master Control Lever™ is an easy to use single lever, operating the choke, starting throttle lock, and on-off switch. The operator must pull the throttle trigger before moving the Master Control Lever™ to the choke position.
Master Control Lever™
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
Reduced-Emission Engine Technology—Caring for Nature
This safety feature must be depressed before the trigger can be activated.
Throttle Trigger Lockout
Simply lift the lever and twist the caps to remove or tighten. There’s no need to use a tool to tighten or loosen.
Toolless Fuel and Oil Caps with Retainers

Hazard Warnings

General Power Tool

Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products. STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only. Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products. STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.

Proposition 65 - English

This product contains chemicals known to the State of California to cause cancer and reproductive harm. www.P65Warnings.ca.gov

E-10 Statement

Note: STIHL  recommends use of fuel with no more than 10% Ethanol content. Using fuel  with greater than 10% Ethanol content may cause damage to your equipment and  may void your STIHL warranty.
