Technical details

Displacement2.2 cu-in
Power1.60 kW
Engine power2.20 HP
Engine power2.20 bhp
Device weight without refuelling10 lb 1)

Features

The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.

STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
Anti-Vibration System
These spikes prevent pull-in and provide better control, making cutting easier.
Bumper Spikes
The convenient diagnostic socket makes it easy for a local STIHL Dealer to plug in the chainsaw and access information about operating time, diagnostic support, and more.
Diagnostic Socket
The provided easy-access makes it almost effortless to remove the cover for fast filter cleaning or replacement.
Easy-Access Air Filter Cover
The hand guard is designed to reduce the risk of injury.
Front Hand Guard
Housings are lightweight, withstand greater impact, and are corrosion-resistant.
High-Tech Polymer Housings
The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.
IntelliCarb™ Compensating Carburetor
The hand guard is designed to reduce the risk of injury and provide a wide area for foot placement during starting.
Rear Hand Guard
This product features reduced exhaust emissions allowing users to make less of an impact on their surroundings.
Reduced Exhaust Emissions
The STIHL Easy2Start™ system makes starting STIHL outdoor power tools almost effortless, eliminating the need for a strong pull of the starting cord. This advanced starting system is designed to make starting STIHL products easier. The specific system may vary by model, but in each case, a quick pull overcomes the engine’s compression to minimize the strength and effort required to start. Available on selected products.
STIHL Easy2Start™ (E)
The chain features specially engineered grooves designed to channel oil to critical wear areas.
STIHL OILOMATIC® Saw Chain
The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
Side-Access Chain Tensioner
Large baffles reduce noise level and contain a screen designed to reduce the emission of sparks.
Spark Arrester Muffler
This safety feature must be depressed before the trigger can be activated.
Throttle Trigger Lockout

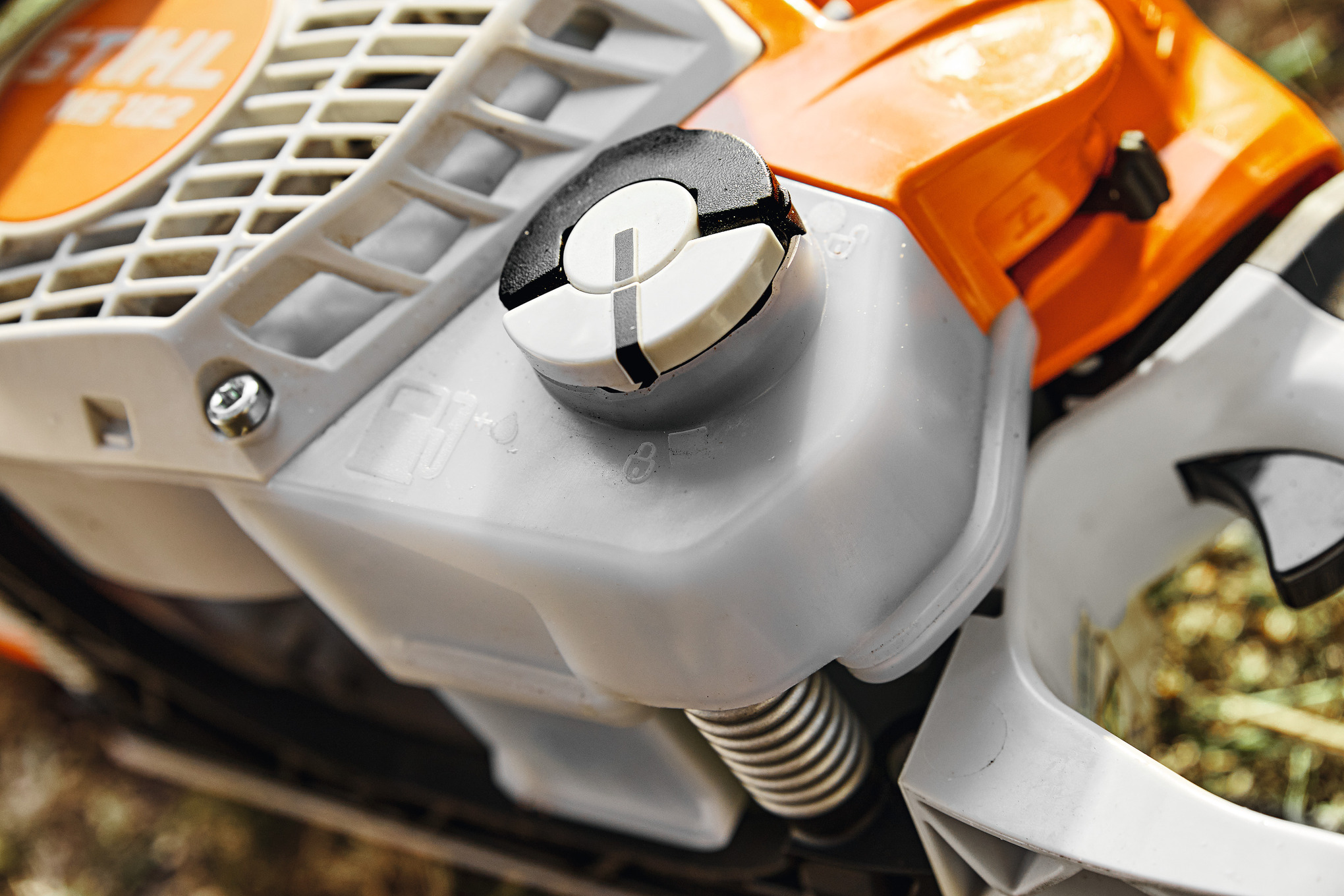

The semi-transparency allows operators to easily check the fuel level before starting work.
Translucent Fuel Tank

Hazard Warnings

E-10 Statement

Note: STIHL  recommends use of fuel with no more than 10% Ethanol content. Using fuel  with greater than 10% Ethanol content may cause damage to your equipment and  may void your STIHL warranty.

General Power Tool

Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products. STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only. Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products. STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.

Proposition 65 - English

This product contains chemicals known to the State of California to cause cancer and reproductive harm. www.P65Warnings.ca.gov
