- Product Details
- STIHL guide bar with reduced kickback and weight
- For third-party-manufactured chainsaws with K095 guide bar connection
- For professionals in forestry and agriculture, gardening and domestic use
- Longer service life, greater stability and better reliability
- Maintenance-free and extremely robust thanks to closed sprocket bearing
- Not compatible with STIHL chainsaws
Technical details
| Groove width | 1,3mm/.050" |
| Sprocket nose pitch | 8,25mm/.325" |
| Bar tail | K095 1) |
| No. of teeth, sprocket nose | 10 |
| Bar length | 40cm/16" / 45cm/18" / 50cm/20" |

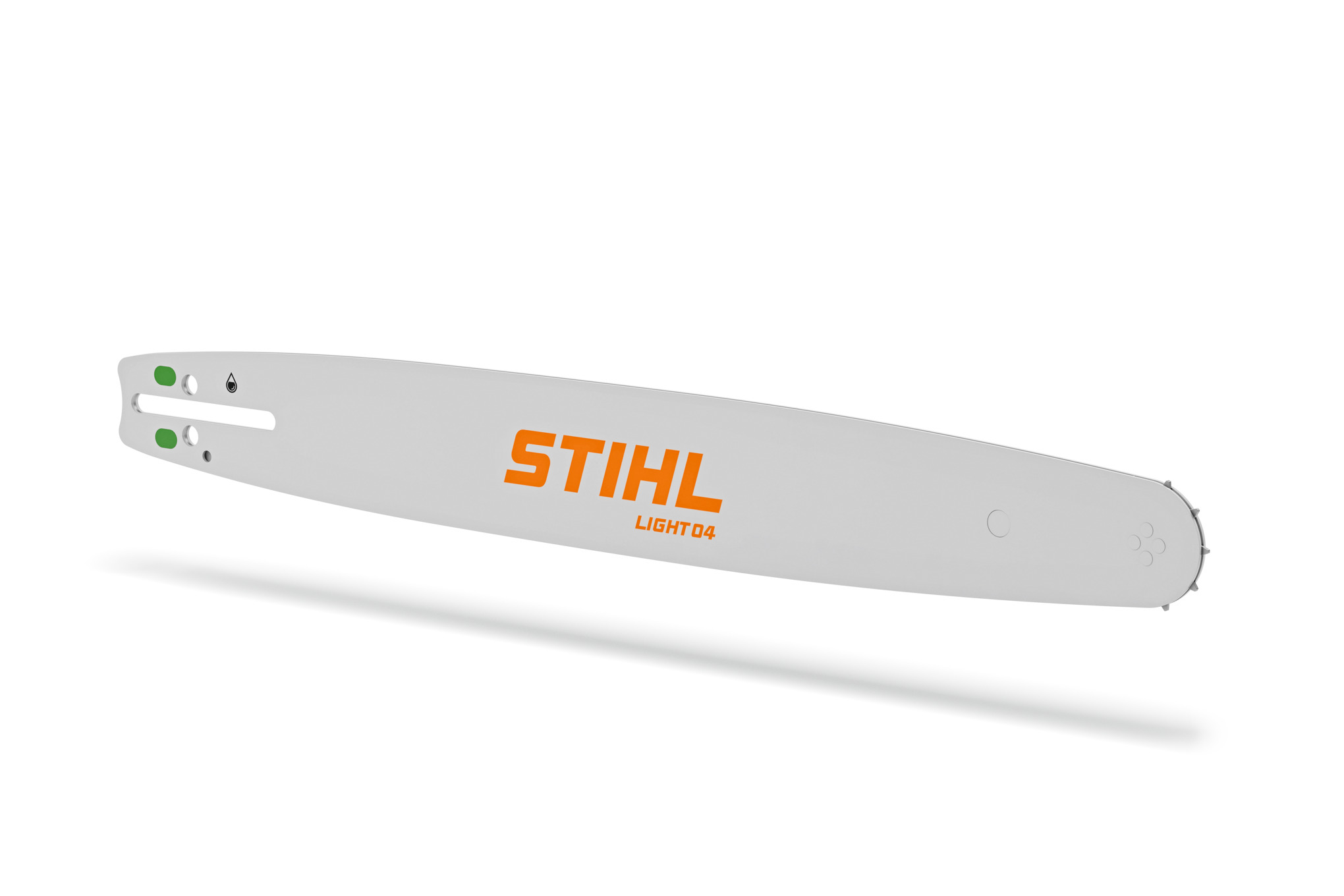

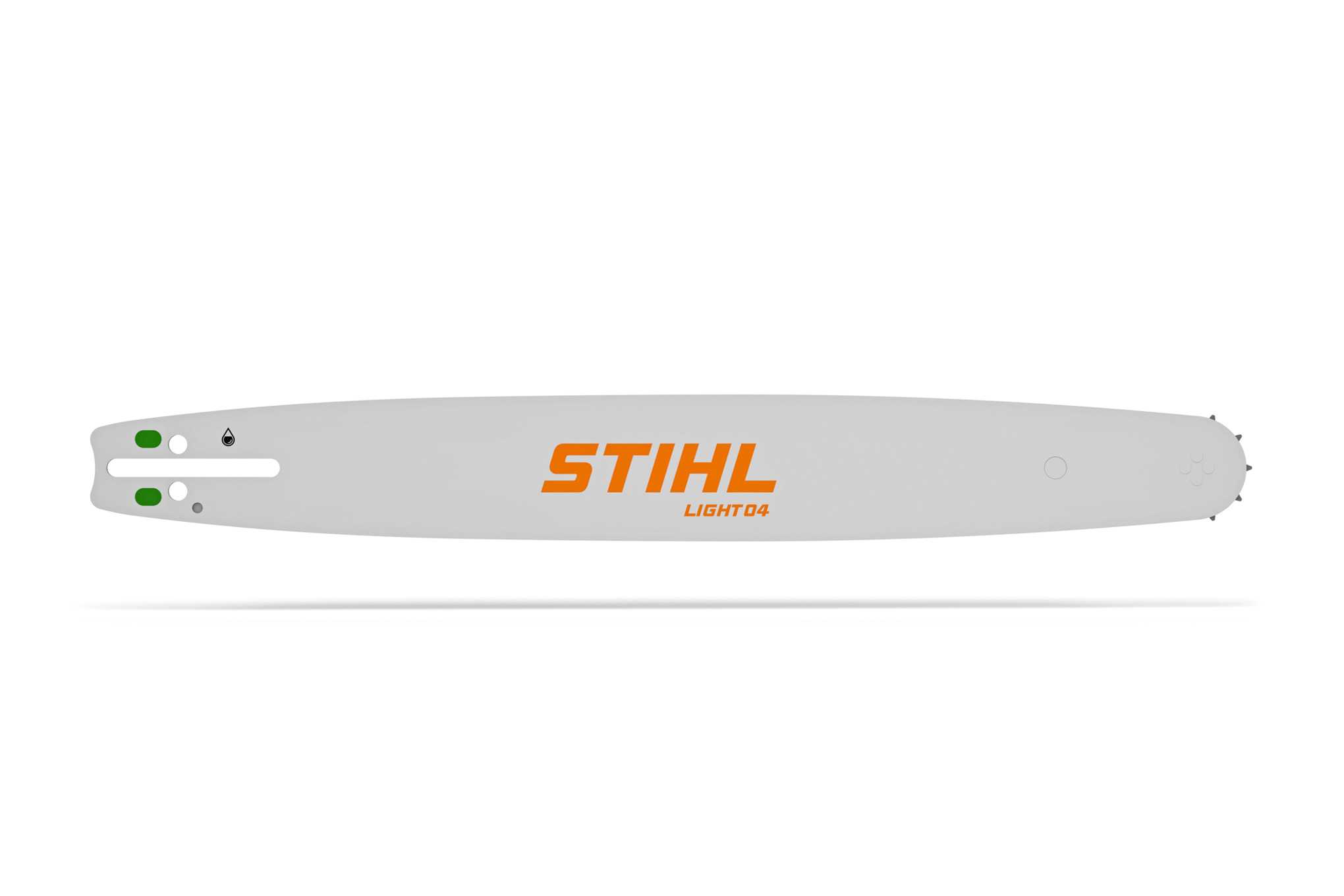

STIHL Light 04 guide bar, .325", .050" with 3051 bar tail: For third-party-manufactured chainsaws with K095 guide bar connection
Thanks to the STIHL Light 04, 3/8" P, .050" guide bar with 3051 bar tail, you can enjoy the real advantages of a STIHL guide bar with a chainsaw from other manufacturers such as:
Bosch
Dolmar
Echo
Homelite
Husqvarna
Jonsered
Makita
McCulloch
Ryobi
The STIHL Light 04, .325", .050" guide bar is ideal for professional tree maintenance work and demanding private applications. With STIHL Light 04 guide bars with a .325" pitch, you can easily handle tasks such as felling smaller trees and delimbing with endurance. Thanks to its low weight and well-balanced design, STIHL Light 04 guide bars are easy to manoeuvre and facilitate particularly agile working.
For increased robustness and durability, the sprocket nose of STIHL Light 04 guide bars is fastened with 4 sturdy rivets. In addition, the closed sprocket bearing offers high protection against external dirt ingress. Furthermore, the sprocket bearing of STIHL guide bars does not need to be lubricated manually, which eliminates the need for maintenance.
The STIHL Light 04, .325", .050" guide bar with 3051 bar tail is suitable for chainsaws with an engine output up to 2.3 kW and is available in lengths of 16", 18" and 20".
The most important advantages* of the STIHL Light 04 at a glance:
- 50% longer service life: thanks to more wear-resistant materials and 4 rivets on the sprocket nose
- Superior robustness: less sensitive to dirt thanks to encapsulated sprocket bearing and closed, well-protected sprocket nose
- Maintenance-free: thanks to lifetime lubrication of the sprocket nose
- Flawless rigidity: up to 20% more dimensionally stable thanks to high-quality and wear-resistant materials
- Low weight: up to 15% lighter due to slim design and weight-optimised intermediate plates
* Advantages compared to guide bars from other manufacturers.
The STIHL Light 04, .325", .050" guide bar with 3051 bar tail is not compatible with STIHL chainsaws.
