STIHL Edger Common Features



Powerful, portable and uniquely patented to meet EPA emission standards, STIHL edgers, like all STIHL products, are reliable and easy to use. STIHL edgers utilize advanced technology to encourage smoother, easier starts to meet the needs of demanding professionals. Standard features on all edgers include an adjustable depth wheel, easy-access 8" steel blade, hardened steel straight or curved shaft and a skid plate. Discerning homeowners and dedicated professionals get the edge on lawn care only a STIHL can deliver.

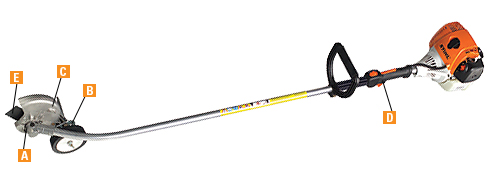

COMMON FEATURES


A
Skid plate to protect gearbox
B
Easy to adjust depth wheel
C
Mud flap style debris deflector
D
Start/run/stop controls on handle
E
Easy-access blade for replacement and 8" hardened steel blade

OTHER COMMON FEATURES NOT DIAGRAMMED


Protected Spark Arrestor Muffler has large baffles which reduce noise level and contains a screen designed to reduce the emission of sparks.
Protected Spark Plug is protected yet easy to change.
Air Filter Cover is easy to remove for fast and easy filter cleaning or replacement.
Upright Translucent Fuel Tank allows operator to easily check fuel level before starting work. Upright position makes it easier to refill.
Smooth Clean Design has no rough edges to snag on clothing or brush.
High-Tech Polymer Housings are lightweight, withstand greater impact and are corrosion-resistant.
Purge Pump Primer lets you prime the carburetor without flooding it.
Protected Choke Lever/Knob helps prevent damage.
Heavy-Duty Centrifugal Clutch is designed to reduce slippage.
Throttle Trigger Interlock must be depressed before the trigger can be activated.
Fully Lined Drive Shaft provides smooth operation and less vibration.
Adjustable Front Handle adjusts for comfort.
Protected or Enclosed Control Cables eliminate dangling and loose wires.
Protected Throttle Trigger helps prevent damage. Professional models only.
Clip for Strap or Harness.
Long-Life Cylinders provide maximum wear life, better cooling and lubrication, more power output.
Electronic Ignition provides easier starting and smoother running.
Superior Balance and Design help reduce operator fatigue and make handling easy.

ADDITIONAL FEATURES

These features are found on some STIHL edgers.


Easy2Start™ System (E): This starting system reduces the strength and effort needed to start the engine.
Available on select models.
ElastoStart™ Handle has a built-in shock absorber for smoother starting.
IntelliCarb™ Compensating Carburetor measures air on clean side of air filter and adjusts metering diaphragm in carburetor. Keeps RPM level even when filter begins to clog.
Heavy duty steel-on-steel clutch

*STIHL lawn edgers have many common features. However, all models may not have all the features shown here.
